Technical Note I
from
Dr. Paul Prueitt, Founder of OntologyStream Inc (OSI)
December 4, 2001
1: Overview
This OSI technical note spells out how the SLIP Warehouse Browser works internally, at least partially.
The SLIP Data Management System is a member of a new class of data management systems called Referential Information Bases (or RIBs). The SLIP Data Management System is not a standard relational database and does not run on third party software.
The RIB architecture is advanced, simple and very powerful. Part of the purpose of this technical note is to indicate why the RIB processes are fast, and why their existence has changed what can be done.
In short, the RIB systems are dedicated to single tasks rather than universal tasks. A minimal data structure is created in-memory and algorithms are applied to data aggregation processes.
The standard Oracle or Sybase or SQLServer Data base management System (DBMS) serves multiple purposes. A standard relational DBMS is used the stage the data, manage algorithms, provide backup, and provide for storage. The standard DBMS provides stability to the work environment. But this stability often comes with increased vulnerabilities and dependencies typical of complicated enterprise systems. Every up-date of vendor software has new and often un-anticipated vulnerabilities.
The RIB based SLIP architecture uses files compressed into folder structures and in-memory file mapping techniques to eliminate the dependency on the enterprise DBMS.
A new paradigm is being adopted. The paradigm applied to most types of data warehouse / data mining systems and to neural network and genetic algorithm system. This paradigm provides a great deal of independency from enterprise software systems such as RDMS. In particular the SLIP Technology has its own correlation and categorical algorithms. Associative memories using the RIB system are under development.
2: Incident and Intrusion Management Systems
Because the Incident Management and Intrusion Detection System (IMIDS) task in NOT complex, the RIB is potentially a full solution to outstanding problems in pattern recognition and event detection. This potential remains a conjecture until SLIP Technology is first field-tested. As of December, a stand alone personal assistant is available for field testing.
In a typical Intrusion Detection Systems (IDS) the standard relational data mode is used to store remote audit feeds from various customers. Various DBMS tools are used to perform analysis; correlation and data visualization in support of
1) vulnerability assessment
2) identifying hacker and cyber warfare activity
3) forensic analysis and
4) policy determination
The basic components of a combined Incident and Intrusion Management System (IIMS) follows the generic architecture proposed for IDS system by Amoroso and considered as part of the Common Intrusion Detection Framework (CIDF), with the exception that informational response to Incident Tickets are seen as emergent from IDS audit logs.

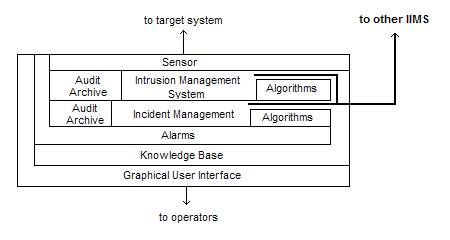

Figure 1: Architecture for Incident and Intrusion Management
An Incident Ticket is generally opened due to a phone call or e-mail. In most cases, the Incident Ticket is opened due to human intervention. However, increasing technical capability provides automation to Incident Response in the form of algorithmic alarms.
After the Incident Ticket is opened a series of steps are recommended.
In book "Incident Response" by van
Wyk and Forno (2001, O’Reilly) the response cycle is composed of
Detection,
Assessment,
Damage control,
Damage reversal
and
Lessons learned.
This composition is similar to other intrusion detection and incident response process models that break down the workflow. The processes are compartmentalized and responsibilities isolated
The workflow starts with a determination of the nature of information. In some cases the information comes in the form of a request for information. In other cases the information is sorted into categories and moved to other stations depending on the informational category. The process model is very much dependant on organizational structure in client communities.
SLIP has been developed to provide an enterprise wide event detection capability where the input is a log file.
3: SLIP Warehouse Browser
The basic methods for intrusion detection is, and will continue to be, audit trail analysis and on the fly processing techniques. SLIP is best characterized as a audit trail process method (see Figure 2). The Cylant system developed by Dr. John Munson is an on-the-fly system (see Figure 3) that attempts to stop intrusions from occurring.

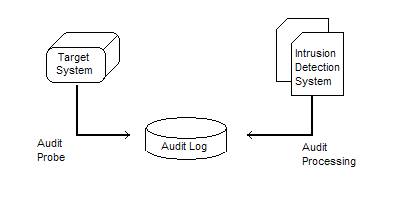

Figure 2: High-level depiction of audit trail processes method (from Amoroso. 1999)
Audit log data is gathered together to provide forensic evidence and to repair and otherwise limit the damage done during an intrusion. However, visualization software can be used to view patterns across an audit log containing tens of thousands or records. The SLIP is developed to complement and supplement this type of global analysis of events.

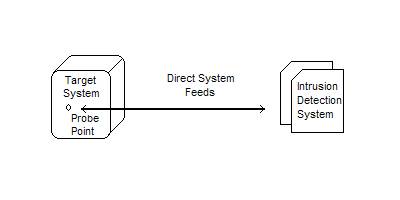

Figure 3: High-level depiction of on-the-fly processes method (from Amoroso. 1999)
The current SLIP Warehouse Browser has a simple nature. The technology is simplified to address only audit trail analysis and transforms on the data from a standard event log. The technology is also being applied to other task domains such as found in bio-informatics; in particular a long-standing BCNGroup project on the recognition of structural invariance in EEG analysis is re-surfacing. However, EEG analysis is considered far more difficult that intrusion log data. The BCNGroup is a not for profit science foundation established in 1997 by Drs Arthur Murray and Paul Pruett.
4: Invariance analysis with SLIP
Aside from some EEG analysis, SLIP is currently applied only to remote audit feed analysis for computer security purposes. Specifically, emergent computing and correlation techniques are applied to the records of an event log.
Computer security event log is often stored and maintained in a flat table having between 8 and 20 columns. Many of the event logs contain 50 or even 100 thousand records. Audit feed event logs may have a million records.
The acronym “SLIP” stands for “Shallow Link analysis, Iterated scatter-gather, and parcelation”. Each of these terms is technical in nature and each term has a small number of supporting algorithms.
In the simplest terms we want to reveal the technical means that supports the Browser’s behaviors. The behavior is expressed through a state/gesture based scripting language and nested event loop controller. OSI Director of Technology Development, Don Mitchell, is the author of this approach. Mitchell’s recent work is on the development of a voice enabled gesture control system for manipulating and interacting with machine ontology. The control system is called a Knowledge Operating System or KOS.
SLIP organizes invariance in a data source into categories and suggests formal relationships between these categories. As the domain experts review these categories and their relationships, the expert may create annotations and even configure the relational linkage between categories in order to account for missing or conjectured information. The domain expert also has control over which data source is accepted as input.
Invariance is formally something that occurs more than one time. Clearly there are many scales of invariance and a lot of invariance in each scale. This is true even in the artificial world of Internet and financial transactions.
ACSII letters each occur a lot, for example, and common patterns of ACSII characters allow for automated full text analysis. Internet search attests to the value of algorithmic analysis of words patterns in text.
The informed introduction of case grammar and modeling algorithms can increase the value of ACSII character based invariance analysis. These algorithms are important to computational natural language analysis. The invariance that SLIP exploits is one that is revealed in a pairwise link analysis called the “SLIP Analytic Conjecture”. This invariance is quite a bit simpler than case grammar. SLIP is simpler to work with and simpler in the degree of complication.
The notion of an atom is the key abstraction in the automated analysis of invariance in Audit Logs. The atoms are the equivalence class of all same values of the contents of the cells in a column. This atoms are then used to form an event chemistry.
5: RIB arithmetic
Let us look at the SLIP Analytic Conjecture a bit closer. The audit feed is always composed of records and each of these records is constrained to have a specific number of cells. Each cell has a defined name and a value. When we have more than one record, we often think of the cells of the same defined name as being a column.
In Figure 4 we show a screen capture of the Excel spreadsheet application. Cell A-1 is indicated and the value “cell value” has been typed into that cell. Columns A, B, C and D are visible, as are records that are numbered, 1, 2, 3, 4, 5, and 6. Sometimes records are called rows.
Figure 4: Microsoft Excel spread sheet
The naming convention “rows and columns” conceptual ties together the cells of a 2-dimensional spreadsheet with the cells of a 2-dimensional array. An array is a mathematical object that is like the spreadsheet. An array is composed of cells organized into columns and rows. The simplest array is one that has one column. A foundational concept in RIB is the ordered column. We will call an ordered column a “RIB line”, to remind the reader of the ordering properties that come with geometrical lines. In-memory mapping of an ordered column allows a type of pointer arithmetic and object transformation such as a Fourier transformation.
The natural order of the points on a line (as in plane geometry) has been used in science for at least 25 centuries. During the last 2 centuries the theory of partial and total ordering, part of modern mathematical topology, has established some well understood formalism regarding linear order, lattices, gaskets and rough sets (to name a few of the formal constructs). Topology is the study of formal notion of nearness and neighborhood.
Topological constructs have not been extensively used in data aggregation. Perhaps this is due to the level of abstraction. However, Prueitt’s background is a combination of computer science, Russian topological logic (what ever that is), artificial neural networks, theoretical immunology, and in the area of higher mathematics called topology. This background has established a radical simplification in the sort and search algorithms necessary for data aggregation. The result is speed, and with this speed we are able to allow real time interaction with a sign system based on data invariance.
The information technology community may now consider some rather startling facts. Let is look at one of these facts. Suppose we have a collection, C, of one million numbers randomly selected from the set of integers less than one billon. Now select one more integer, n, randomly between 1 and 1,000,000,000. One of the SLIP algorithms will determine if n is an element of C in 31 comparisons.
How is this possible? The answer is very simple to understand once perceived. The concept of a RIB line is derived directly form a concept developed in mathematical topology. As introductory graduate texts in mathematical topology show, a sequence of dyatic rationals can be used to partition a line in a certain nice way. This is sometimes called the Cantor set. But the concept has not often been applied to the search space problem, and for a good reason. However this reason can be side stepped using a change in number base. Hint: the base should be the same as the number of letter atoms found across the set of all tokens. If we are using upper and lower letters plus the base 10 digits then this base is 62. Using this base, the text in databases has a nature order where all same values are put together. This order serves as a means to memory map data. Programs can then treat the entire collection of data elements as a single object.
With arbitrary data columns represented as RIB lines, then the same search and sort algorithms available for numeric columns are universally available.
The SLIP Technology Browser uses a generalization of a dyatic partition sequence to find out if a specific string of length, of say 20 ASCII characters, is within a string of several million ASCII characters. This search algorithm is completed around a million times in order to produce the cluster process in the SLIP Technology Browser. Each iteration takes less than 31 string comparisons. The entire cluster process now takes a few seconds. The same search process takes over 4 hours using the FoxPro Rushmore indexing technology.
The SLIP Warehouse Browser works with ASCII files as input. The data is read into four types of in-memory data structures;
1) objects
2) arrays
3) lines
4) mapped files
Objects are typical Visual Basic, Java or C++ type objects. They have an interface that defined how the objects methods and private data is accessed and manipulated by messages sent between objects. Arrays, lines and mapped files are not objects because these constructs have no interface and no internal methods or data.

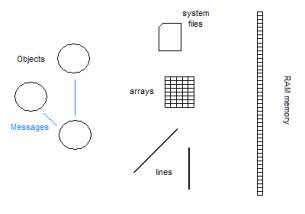

Figure 5: The basic elements of the SLIP data structures and algorithms
In the next section, we will look at the process model that takes audit log information and transforms this information into the data elements that are necessary to the SLIP Technology Browser.
6: The Process Model for the Warehouse Browser
The Browsers themselves are very simple stand-alone executables originally developed in FoxPro and then entirely ported to a RIB architecture written with minimal Visual Basic. The Warehouse Browser is under 200K in size. The Technology Browser is under 400K in size. There is no installation process as the code runs without any custom VB DLL.

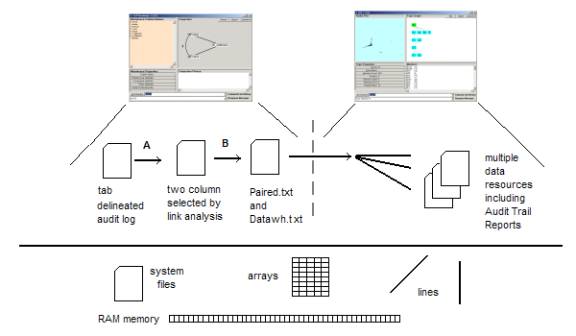

Figure 6: The Process Model
Figure 6 shows that the SLIP software is a complete system with an interface, a data layer and a physical layer.
The Warehouse Process Model takes a tab delineated audit log and allows the user to select any two of the columns for a link analysis. The two columns are written out to a file called Mart.txt. A special algorithm completes the link analysis in a few seconds and produces an ASCII text file, called Paired.txt, consisting of a single column of paired values. The paired values are both from the second column. The first column in the Mart.txt is required to establish the pairing relationship.
Example: Mary talks to Don and James talks to Don. Mary and James would both be second column values and Don would be the first column value. Mary and James are paired because of the possible relationship.
The special algorithm simply makes a list of all values that occur in the b column and then makes a delimitated string with all “a” values that occur in a record where the b column value is Mary (for example). This string is then converted into all possible pairs of “a” column values, and written out to the Paired.txt. The relationship to the “b” value is lost as the algorithm moves from one “b” value to the next. This process of abstraction produces atoms that have link potential represented as in Figure 7. The existence of a relationship, or not, is the only information used by the clustering process.
Recall that any two columns can be used to develop an Analytic Conjecture. Switching the two columns makes a complementary relationship. This complementary relationship is not used in the atom clustering process. A different use has been found. The complementary information specifies the set of relationships that each of the atoms may have to any other atom.

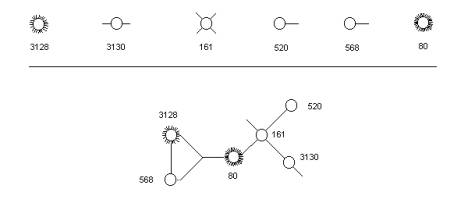

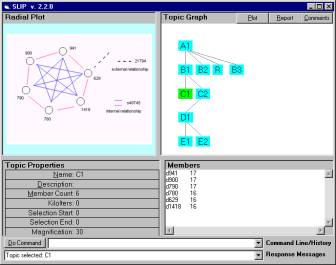

When the clustering process is completed, then the set of atomic relationships can be used to represent the cluster in an event map. (see Figure 7.)
The set of atomic relationships has been made part of the SLIP atom object. The complementary relationship to the Analytic Conjecture is used to compute this set. The atom object is now programmatically available as part of the SLIP Technology Browser.
Table 1
